Replacement Head & Hearing


This page is about Ultron’s new 3D printed head. Check out the main project index for the rest.

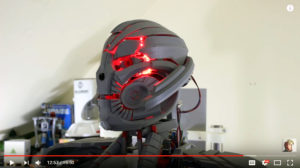

There are some YouTube videos about this, or scroll down for pictures and words.

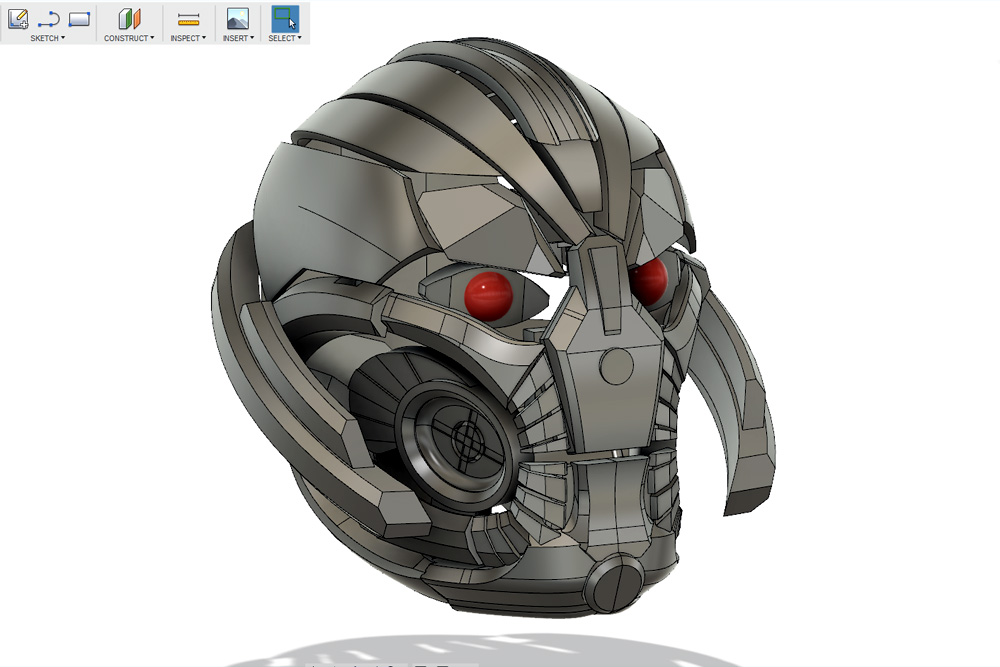

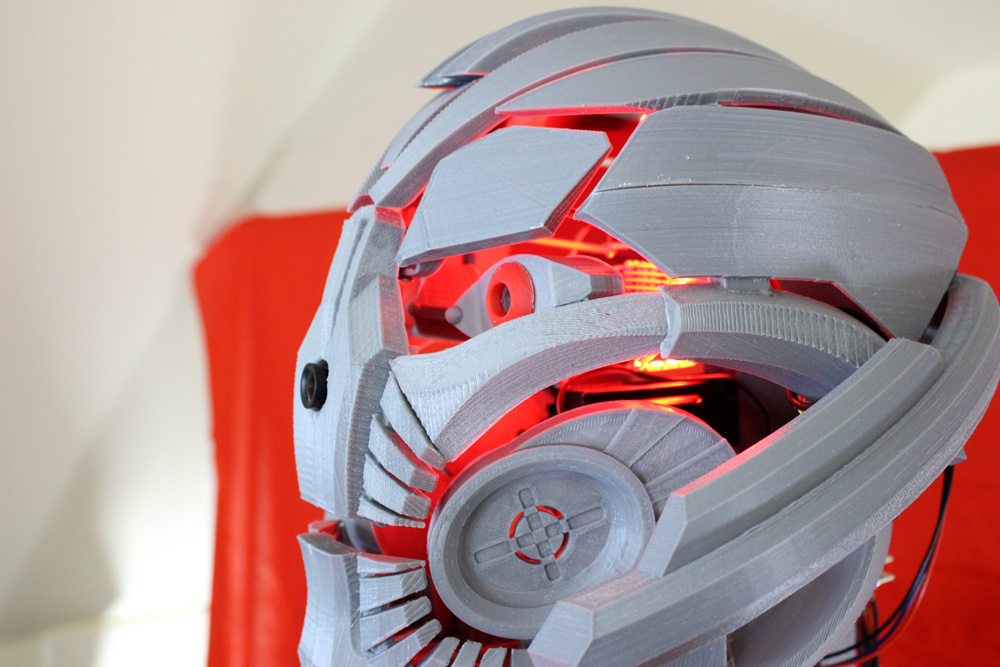

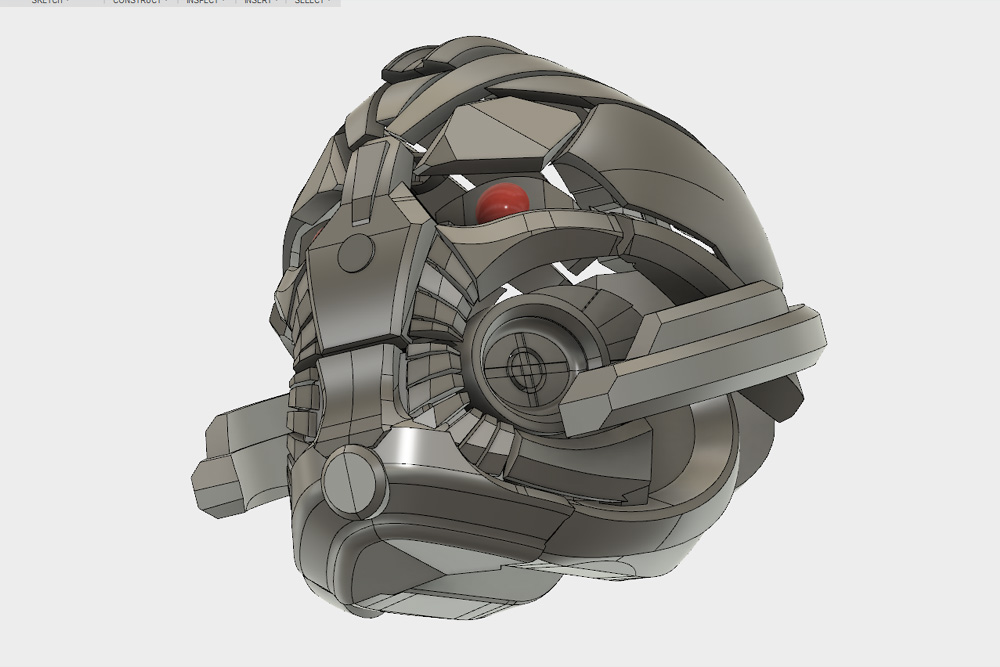

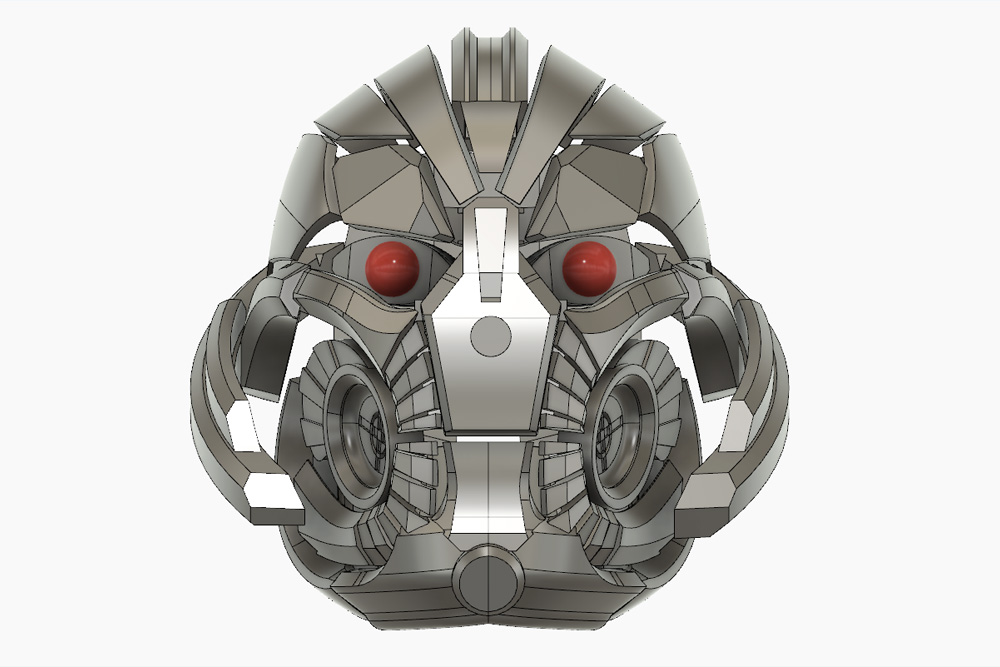

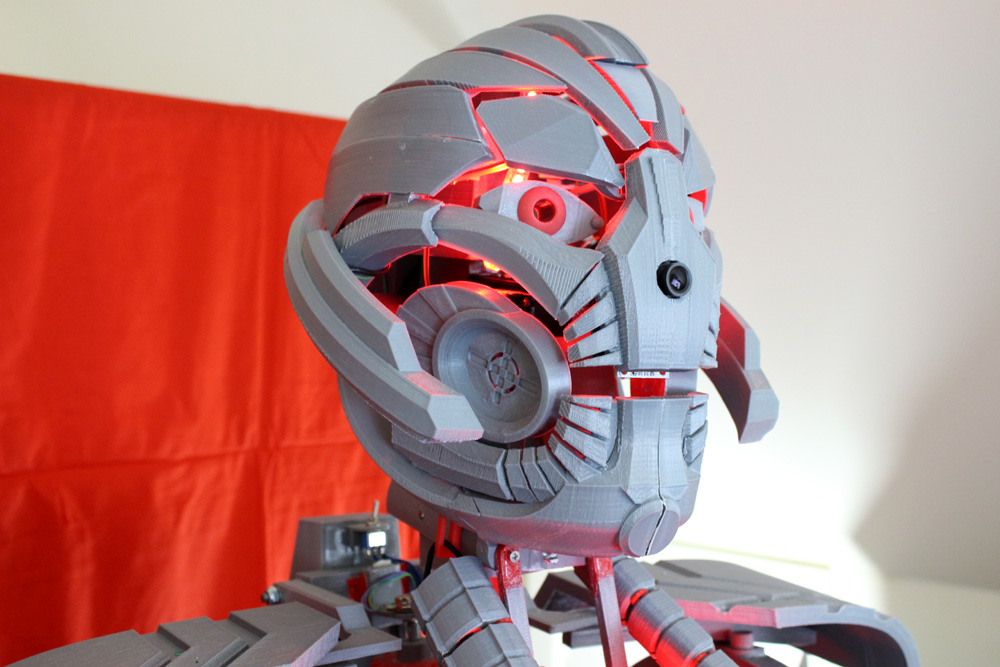

I designed Ultron’s new head in Autodesk Fusion 360, which is free to enthusiasts. This was based on the original head gimbal so it would slot right on. The head is built on a frame so light can shine through:

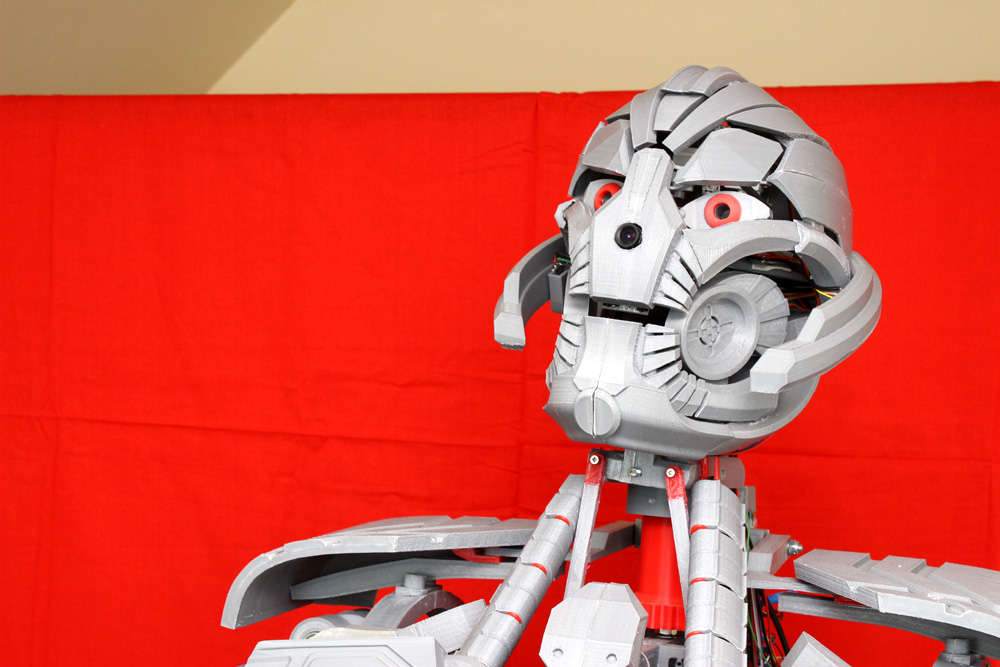

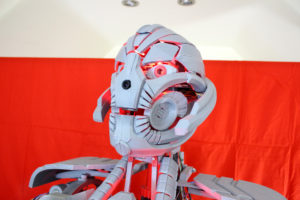

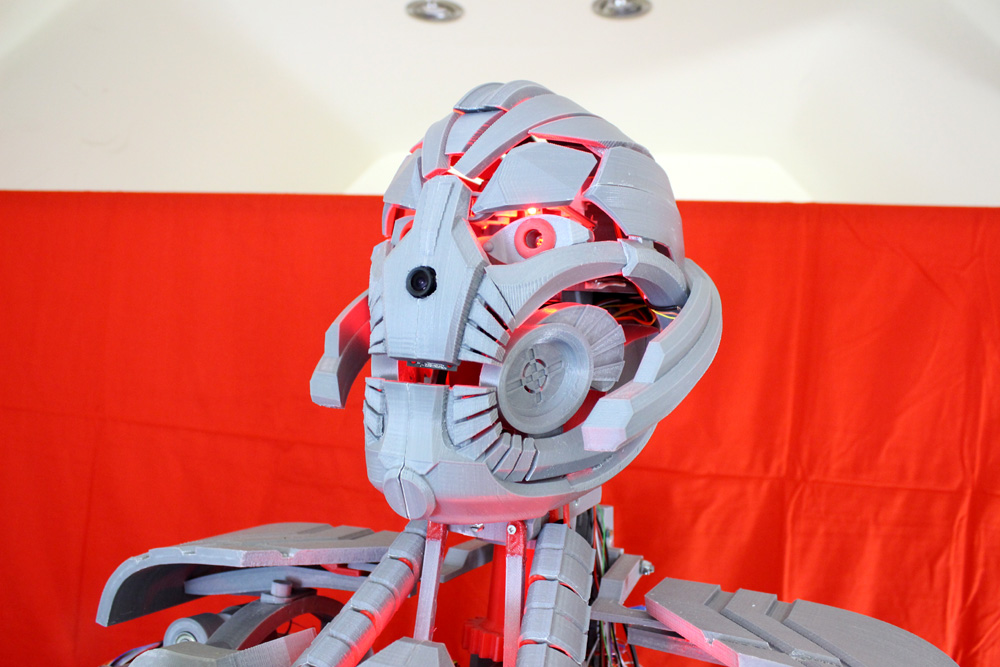

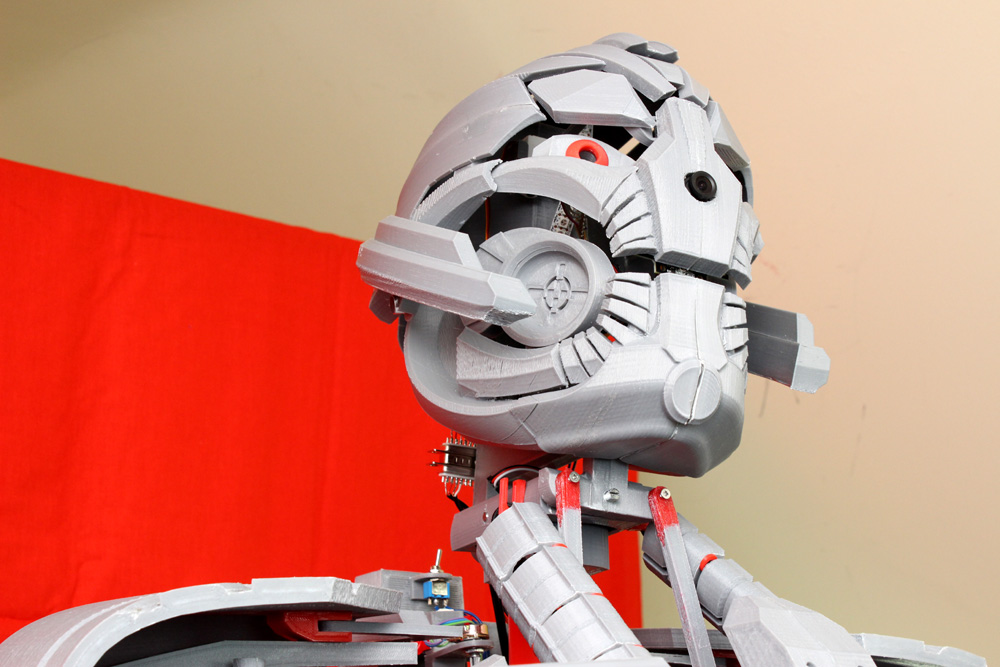

The head is printed in ABS and all the parts are stuck together with Acetone solvent welds. I’ve used the original mouth servo but integrated new eyebrow servos so Ultron can have facial expressions.

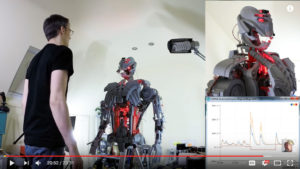

I’ve also integrated hearing – check out the video above.
